GVA 입축 축류 펌프

VERTICAL AXIAL FLOW PUMP

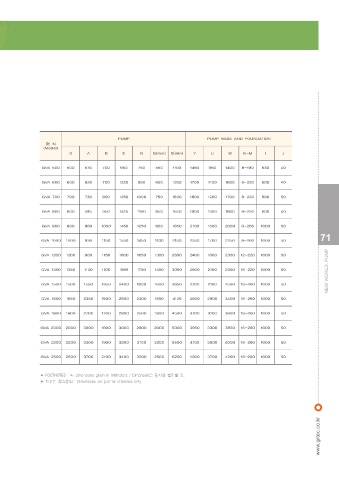

외형 치수도 / Outline Drawing

PUMP PUMP BASE AND FOUNDATION
형 식
(Model)
D A B E G Q(min) S(min) Y U W K-M I J

GVA 500 500 570 700 950 750 550 1100 1480 950 1400 6-190 630 40

B GVA 600 600 620 700 1220 850 650 1250 1700 1100 1600 6-220 800 40

GVA 700 700 730 850 1250 1000 750 1500 1800 1200 1700 8-220 800 50
K-M
D GVA 800 800 815 950 1425 1100 850 1650 1900 1300 1800 8-220 800 40
E
A GVA 900 900 880 1050 1450 1250 950 1850 2100 1500 2000 8-260 1000 50
70 GVA 1000 1000 930 1150 1550 1450 1100 2150 2350 1700 2250 8-260 1000 50 71

W GVA 1200 1200 900 1150 1600 1650 1300 2650 2400 1800 2350 12-220 1000 50
NEW WORLD. PUMP J(Spacer for motor) GVA 1350 1350 1550 1350 1895 1800 1600 3050 2500 2100 2350 16-220 1000 50 NEW WORLD. PUMP

1130
1100
1750
1450
2400
2700
1500
3650
16-260
2500
50
1000
2100
GVA 1500
U
V PUMP FOUNDATION GVA 1650 1650 2350 1500 2600 2300 1650 4125 3500 2900 3400 16-260 1000 50
GVA 1800 1800 2700 1700 2800 2500 1800 4500 3700 3100 3600 16-260 1000 50
MIN. LEVEL
GVA 2000 2000 3000 1800 3000 2800 2000 5000 3950 3300 3850 16-260 1000 50
GVA 2200 2200 3300 1900 3200 3100 2200 5500 4100 3500 4000 16-260 1000 50
S
GVA 2500 2500 3700 2100 3400 3500 2500 6250 4200 3700 4200 16-260 1000 50
✳ FOOTNOTES : All dimensions given in millimeters / Dimension은 당사와 협의할 것.
G ✳ 치수는 참고용임 : Dimensions are just for reference only.
Q
