GMT / GMV 다단 터어빈 / 다단 벌류트 펌프

MULTI STAGE TURBINE / MULTI STAGE VOLUTE PUMP

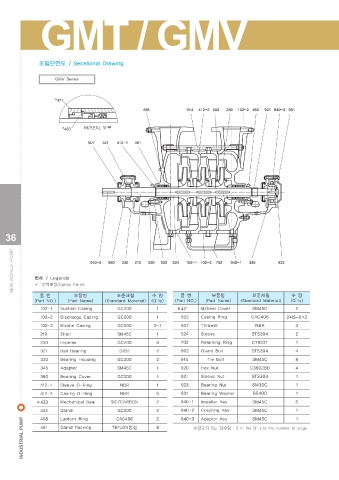

조립단면도 / Secetional Drawing

GMV Series GMT 10/80 Series

*471
458 914 412-2 502 230 102-2 452 921 940-3 931
507 412-1 920 452 902 102-1 461 458 412-2 502 230 102-2 433 471 921 940-3 931

*433

507 321 412-1 461

36 940-2 321 360 330 210 524 102-3 914 940-1 345 923 37

NEW WORLD. PUMP 범례 / Legends 940-2 360 330 210 920 902 524 102-1 102-3 702 940-1 345 923 범례 / Legends NEW WORLD. PUMP

✳: 선택부품(Option Parts)
품 번
품 번 부품명 표준재질 수 량 품 번 부품명 표준재질 수 량 ✳: 선택부품(Option Parts) 표준재질 수 량 품 번 부품명 표준재질 수 량
부품명
(Part NO.) (Part Name) (Standard Material) (Q’ty) (Part NO.) (Part Name) (Standard Material) (Q’ty) (Part NO.) (Part Name) (Standard Material) (Q’ty) (Part NO.) (Part Name) (Standard Material) (Q’ty)
102-1 Suction Casing GC200 1 ✳471 M/Seal Cover SM45C 2 102-1 Suction Casing GC200 1 461 Gland Packing TEFLON함침 8
102-2 Discharge Casing GC200 1 502 Casing Ring CAC406 2+(S-1)×2 102-2 Discharge Casing GC200 1 ✳471 M/Seal Cover SM45C 2
102-3 Middle Casing GC200 S-1 507 Thrower NBR 3 102-3 Middle Casing GC200 S-1 502 Casing Ring CAC406 2+(S-1)×2
210 Shaft SM45C 1 524 Sleeve STS304 2 210 Shaft SM45C 1 507 Thrower NBR 3
230 Impeller GC200 S 702 Retaining Ring C110OT 1 230 Impeller GC200 S 524 Sleeve STS304 2
321 Ball Bearing STB2 2 902 Gland Bolt STS304 4 321 Ball Bearing STB2 2 902 Gland Bolt STS304 4
330 Bearing Housing GC200 2 914 Tie Bolt SM45C 8 330 Bearing Housing GC200 2 914 Tie Bolt SM45C 8
345 Adapter SM45C 1 920 Hex Nut C3602BD 4 345 Adapter SM45C 1 920 Hex Nut C3602BD 4
360 Bearing Cover GC200 4 921 Sleeve Nut STS304 1 360 Bearing Cover GC200 4 921 Sleeve Nut BrC3 1
412-1 Sleeve O-Ring NBR 1 923 Bearing Nut SM30C 1 412-1 Sleeve O-Ring NBR 1 923 Bearing Nut SM30C 1
412-2 Casing O-Ring NBR S 931 Bearing Washer SS400 1 412-2 Casing O-Ring NBR S 931 Bearing Washer SS400 1
✳433 Mechanical Seal SIC/CARBON 2 940-1 Impeller Key SM45C S ✳433 Mechanical Seal SIC/CARBON 2 940-1 Impeller Key SM45C S
GC200
GC200
452 Gland CAC406 2 2 940-2 Coupling Key SM45C 1 1 452 Gland CAC406 2 940-2 Coupling Key SM45C 1 1
SM45C
SM45C
940-3
Adapter Key
2
Lantern Ring
458
INDUSTRIAL PUMP 461 Gland Packing TEFLON함침 8 수량란의 S는 단수임 : S in the Q’ty is the number of stage 수량란의 S는 단수임 : S in the Q’ty is the number of stage www.grtec.co.kr
940-3
Lantern Ring
458
Adapter Key
